About GWTF
Innovating Water Treatment, Sustaining the Environment and the Future.
By combining our proprietary technologies with proven conventional technologies, we aim to become a global leader in the water treatment solutions sector.
We propose improvement of the efficiency of wastewater sludge treatment while contributing to environmental sustainability through solutions that incorporate energy-saving and power generation capabilities.
Vision and Mission
VISION
Our goal is to become a global leader in water treatment solutions by combining our proprietary technologies with proven conventional methods.
MISSION
We help enhance sludge treatment efficiencyby leveraging our proprietary technologies. We also contribute to environmental sustainability by delivering energy-saving and energy-generating water treatment solutions.
Our Solution
Significant reduction of organic sludge
Innovative
Technology
×
Optimized
Biological
Treatment
technology
Technology Overview

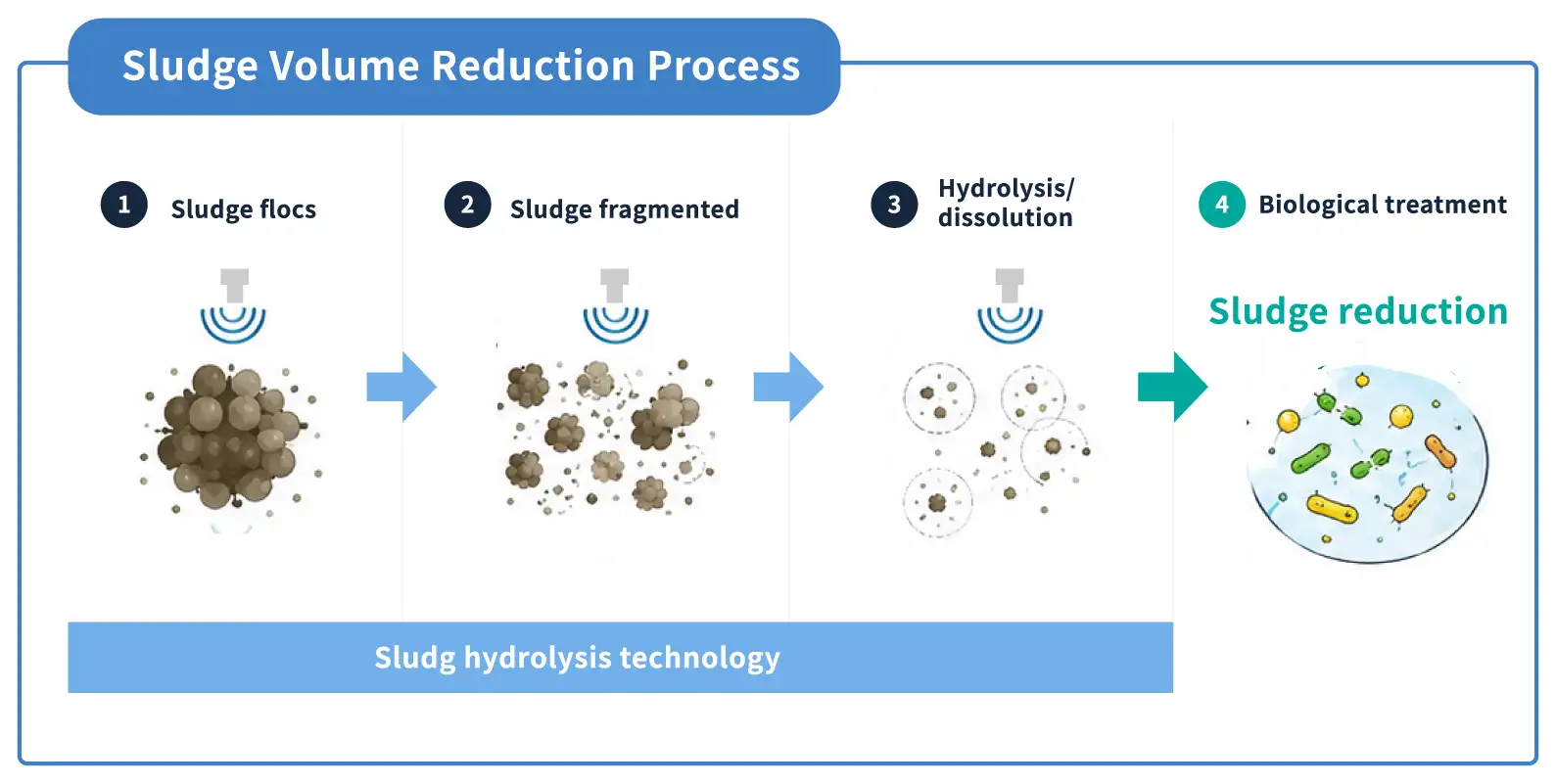

Ultrasonic Sludge Modification Technology
The combination of ultrasonic cavitation and a specialized reactor efficiently breaks down sludge solids into fine particles.
Sludge discharged from biological treatment is finely ground using ultrasonic processing, and the ground sludge is reintroduced into the biological treatment process to be broken down into biogas.
When combined with the sludge digestion process, this improves digestion efficiency, reducing solids while increasing biogas production.
Technology Features
Ultrasonic sludge disintegration technology
technology1

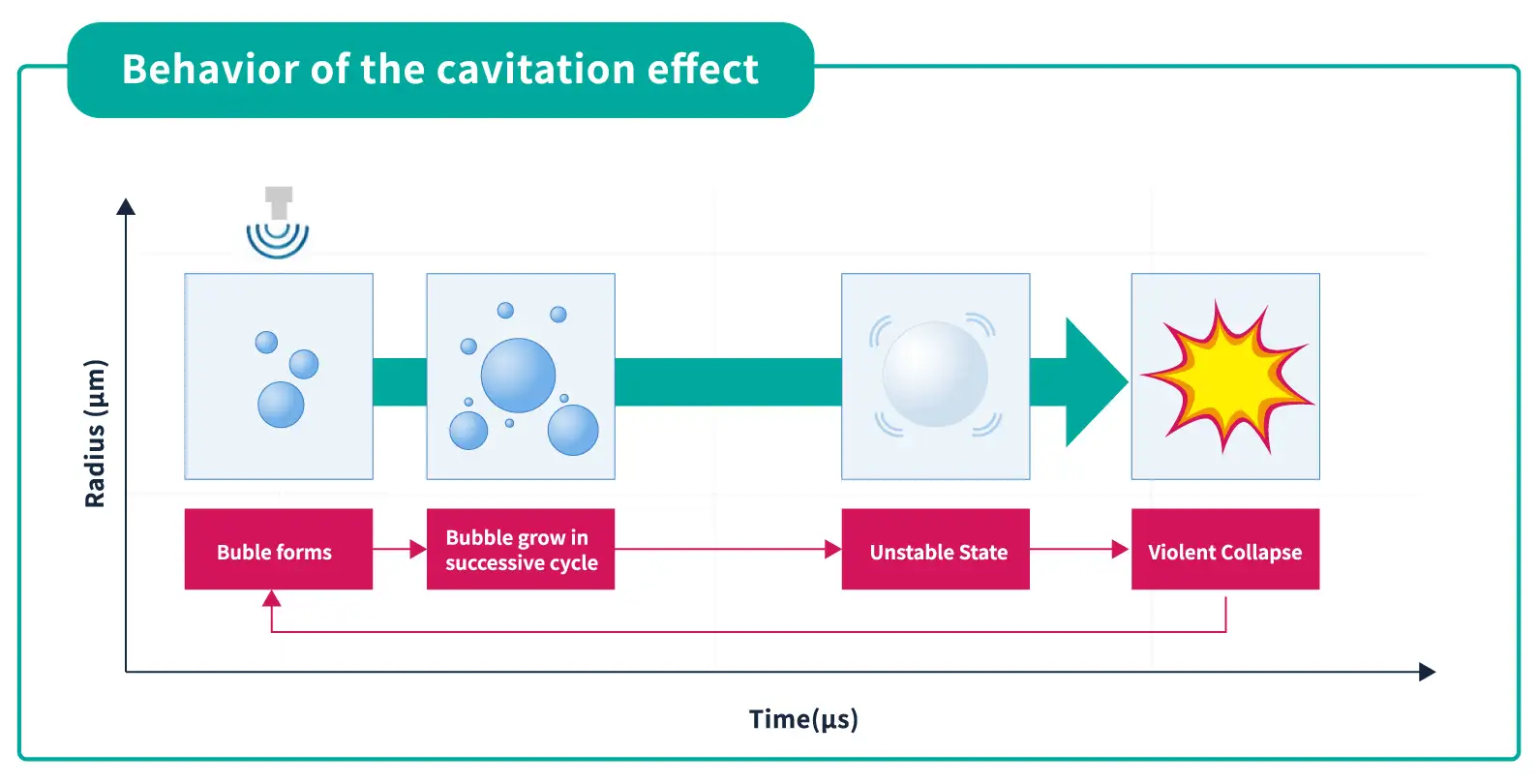

Ultrasonic cavitation breaks down sludge particles into ultrafine particles
technology2
Combined with biological treatment, sludge reduction and energy production can be achieved
Features
Features1
low energy consumption
Features2
Small footprint，no chemical addition

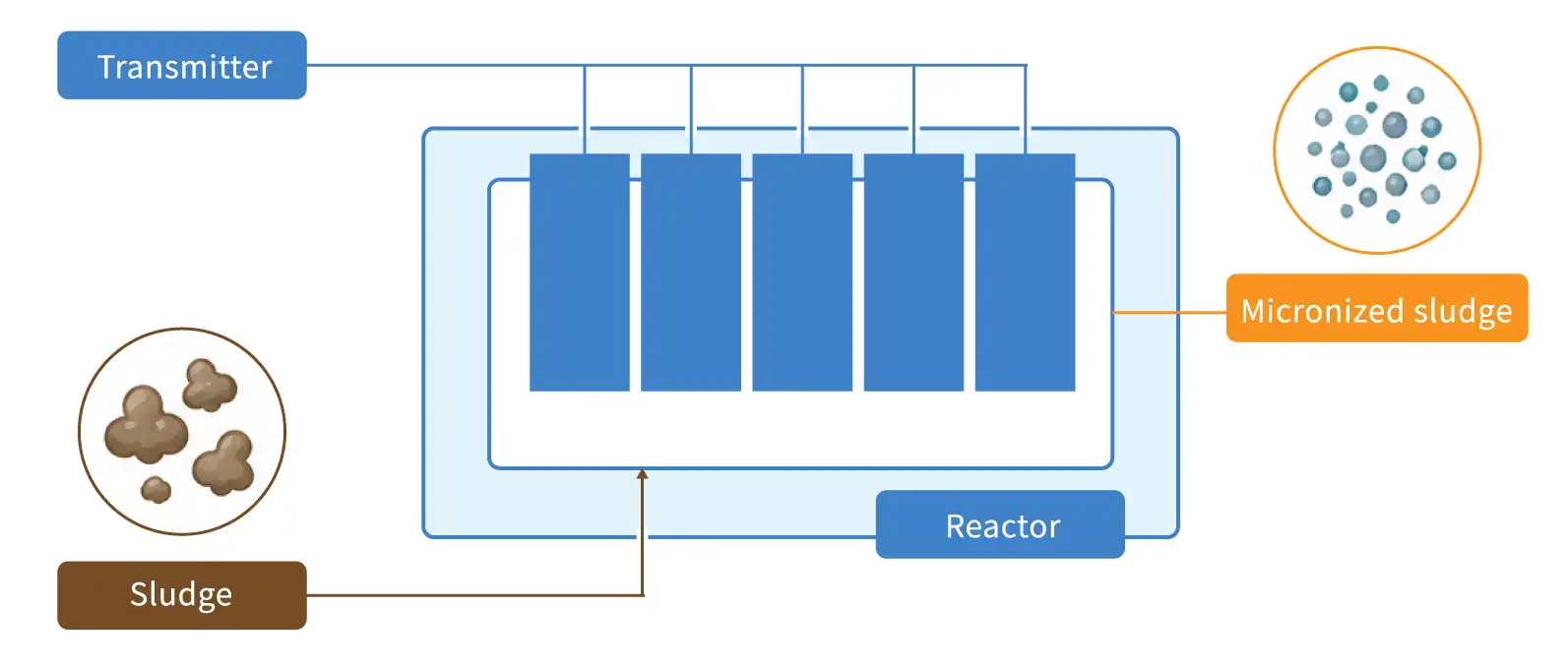

System Overview
Case Studies
This device effectively applies ultrasonic to sludge generated during biological treatment, using powerful cavitation to break the sludge particles down into extremely fine clusters.

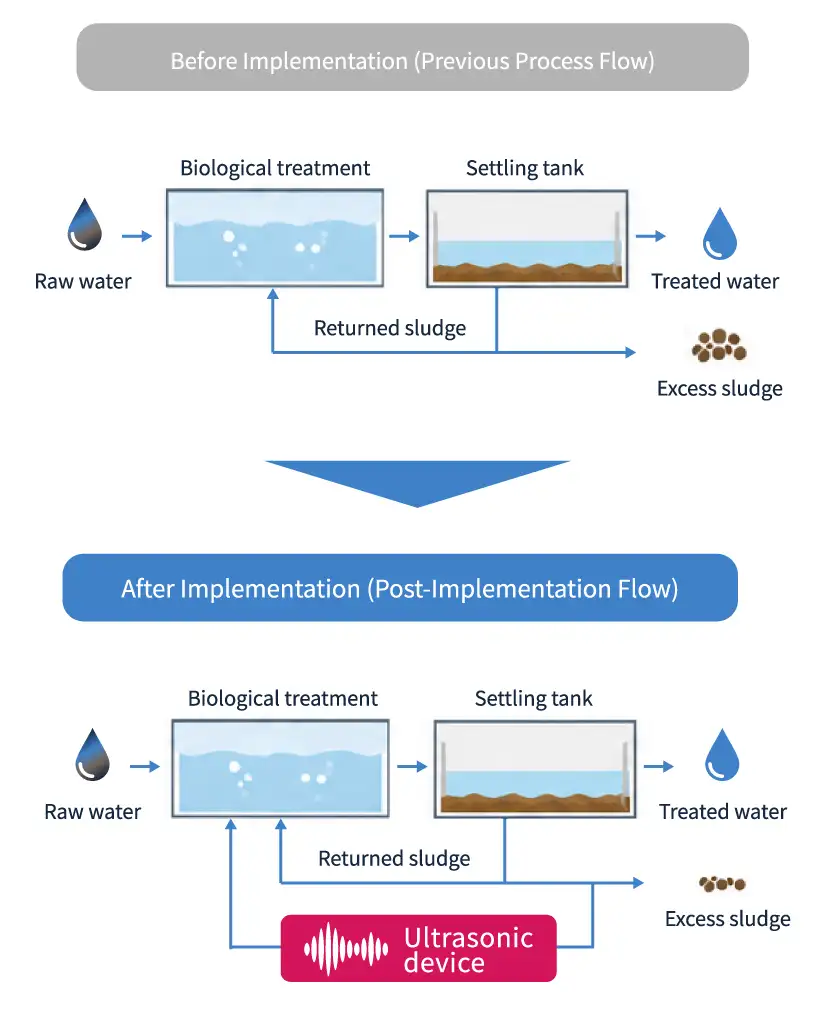

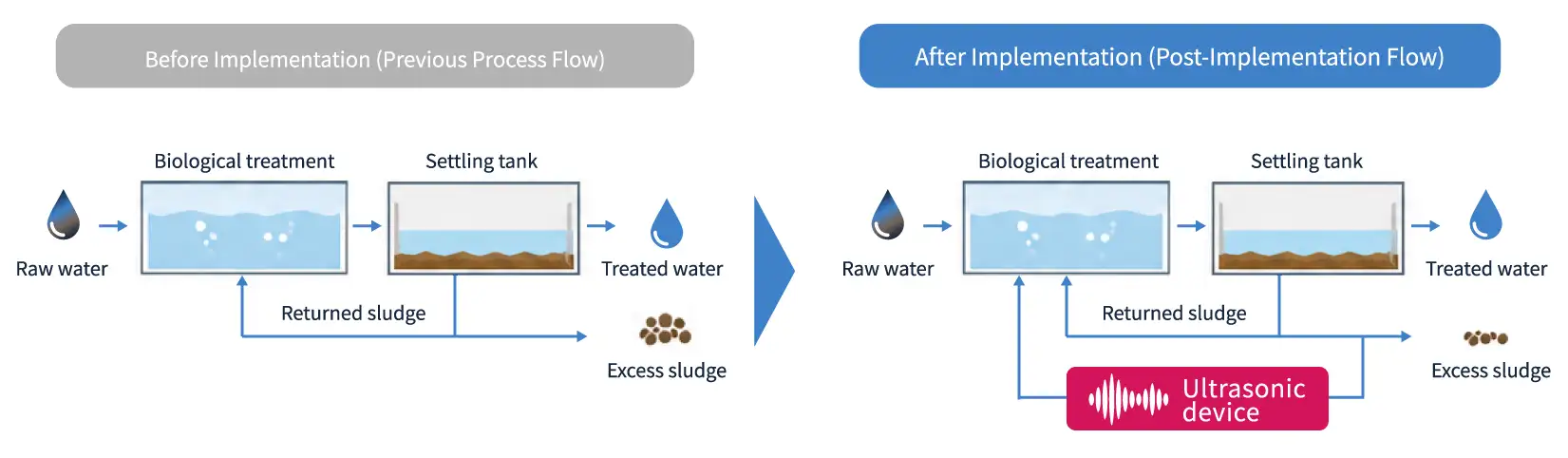

Case Studies1
By returning the finely clustered sludge to the biological treatment process, the microorganisms within the process break down this finely clustered sludge, thereby reducing total solids discharge from the system as a whole.

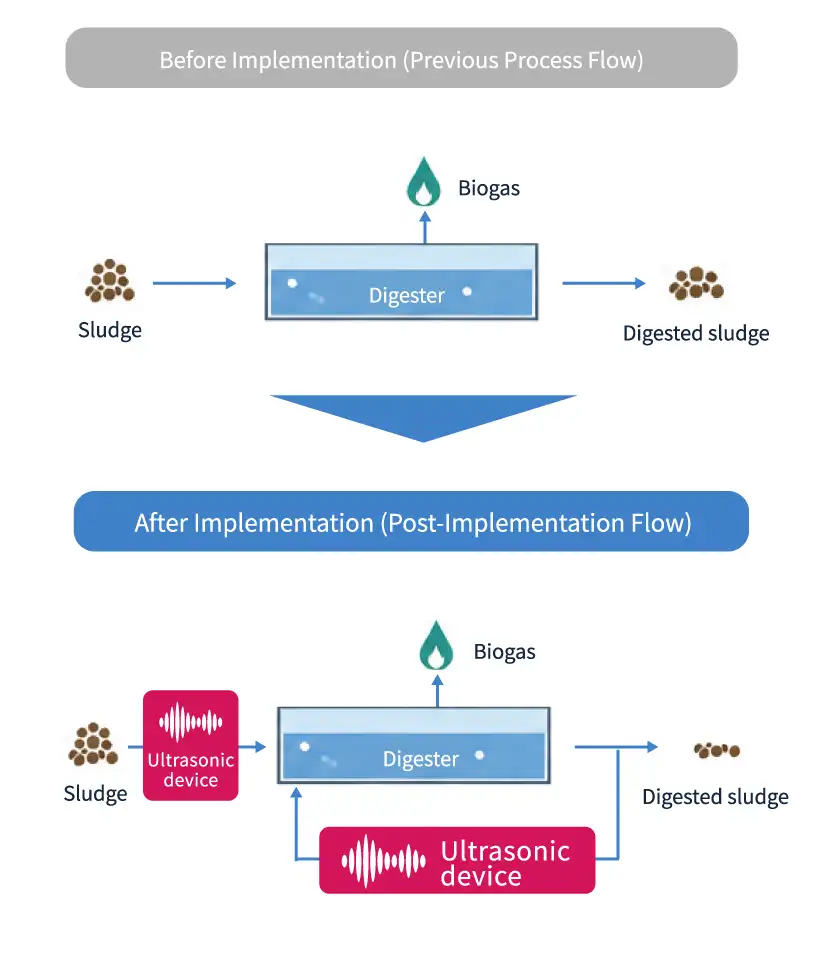

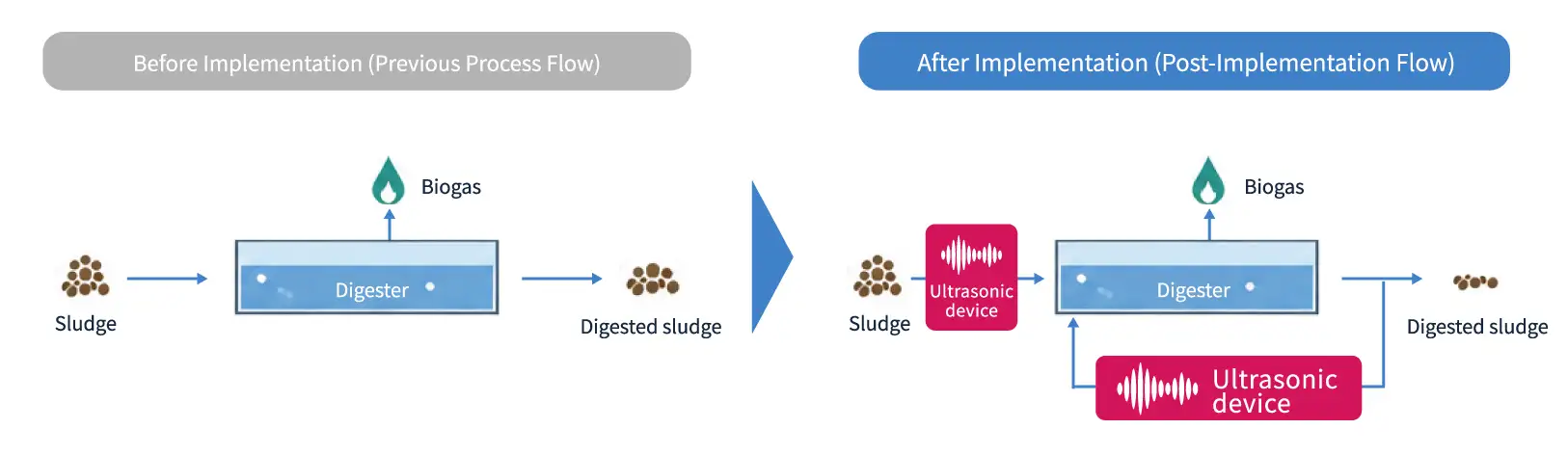

Case Studies2
This system is installed upstream of the sludge digester to improve digestion efficiency, or to break down digested sludge into finer particles and return it to the digester to promote further digestion of undigested sludge, or to serve both purposes and significantly improve digestion efficiency. Improved digestion efficiency reduces the amount of solids discharged after the digestion process and is expected to increase biogas production.
Company Profile
- Company Name
- Global Water Tech FrontierInc.
- Location
- (Registered Head Office Address) 104-0045 2F Konwa Building, 1-12-22 Tsukiji, Chuo-ku, Tokyo
- Date of Establishment
- October 2024
- Representative
- Satoshi Fujiura
- Business Description
- ・Provides groundbreaking wastewater treatment technologies and equipment based on newly developed technologies.
・Combines proprietary water treatment technology with conventional methods to deliver innovative solutions.
